- Hign-concerned Chemical:Â None
- Package:Â Yes
- Certification:Â CE,FCC
- Stackable:Â No
- Ports:Â 5
- Model Number:Â switch network hub CF-SG53
- Gigabit ethernet switch:Â switch 1000mbps
- 5 port ethernet switch filter:Â switch network
- 5 Ports Ethernet switch:Â network ports splitter
- 5 Ports network ports splitter:Â switch network 8 ports
- switch 1000mbps:Â 5 Ports Ethernet Switch
- 5 ports ethernet switch:Â 5 Ports Gigabit Switch
- Gigabit Network Switch Adapter:Â 5 Ports Internet Network Switch
- Ethernet switch:Â 5 Ports Smart Switcher
- 5 Ports Internet Network Switch:Â Switching hub
5/8 Ports Gigabit Ethernet Switch 10/100/1000Mbps Internet Splitter Desktop Network Switch RJ45 Hub Auto MDI/MDIX Switch Unmanaged
Features:
CF-SG53 is a full Gigabit Ethernet switch product, based on Gigabit Ethernet network technology, effectively
Avoids network transmission bottlenecks and has good network adaptability. The Green Ethernet technology effectively reduces energy consumption and protects the environment.
Green Ethernet technology effectively reduces energy consumption and protects the environment. The product’s highly integrated design, lightweight, and easy to operate, makes it suitable for a variety of home and small office.
Specification:
1. Conforms to IEEE 802.3i/u/ab/x/az standard;
2. Adopts IEEE 802.3x standard for full-duplex and Backpressure standard for half-duplex;
3. Support MAC address self-learning;
4. 5 10/100/1000M adaptive RJ45 ports, support port auto-reversal (Auto MDI/MDIX);
5. UTP ports support auto-negotiation function to automatically adjust the transmission mode and transmission rate;
6 Adopts store-and-forward architecture;
7. Dynamic LED indicators provide simple indication of the working status and troubleshooting;
8. external power supply, compact structure design.
9.Network Media(cable): 10BASE-T: Cat3,Cat4 Unshielded Twisted Pair; Â 100BASE-TX: Cat5/5e Unshielded Twisted Pairï¼›1000BASE-TX: Cat5/5e,Cat6 Unshielded Twisted Pairï¼›
11.Transmission Mode: Store and Forward
12.Mac AddressTable: 2K, Automatic Learning, Automatic Updates
13.Switching capacity: 10G
14.Input Power:AC 200-240V/50-60Hz DC 5V/550MA
15.Packet forwarding rate:7.44Mbps
16.Buffer: 384K Bits
17.Output Power (Max):6W
18.LED Indicator: Power(Green), LINK/ACT(Green)
1* User Manual
1* Warranty Card
CF-SG53
High-speed transmission and stable online
Unmanaged switch /Â 5-port Gigabit Ethernet switch
Plug and play  / Compact andflexible / Gigabit port / Fully compatible
No settings required,It’s really simple
According to the type of network cable inserted,it supports MDI/MDI-X automatic connection, 10/100/ 1000M rate adaptive,No setup required, plug and play, peace of mind and peace of mind
Fully automatic identification,automatic detection of network speed
Excellent performance , practical and more people-friendly
All Gigabit ports, fully optimized performance, and comprehensivelyimproved product performance.Use enterprise-level standards to create affordable home switches
Data lossless , smooth experience
Adopts store and forward transmission mode to automaticallylearn and update MAC addresses.Data lossless, low latency and fast transmission

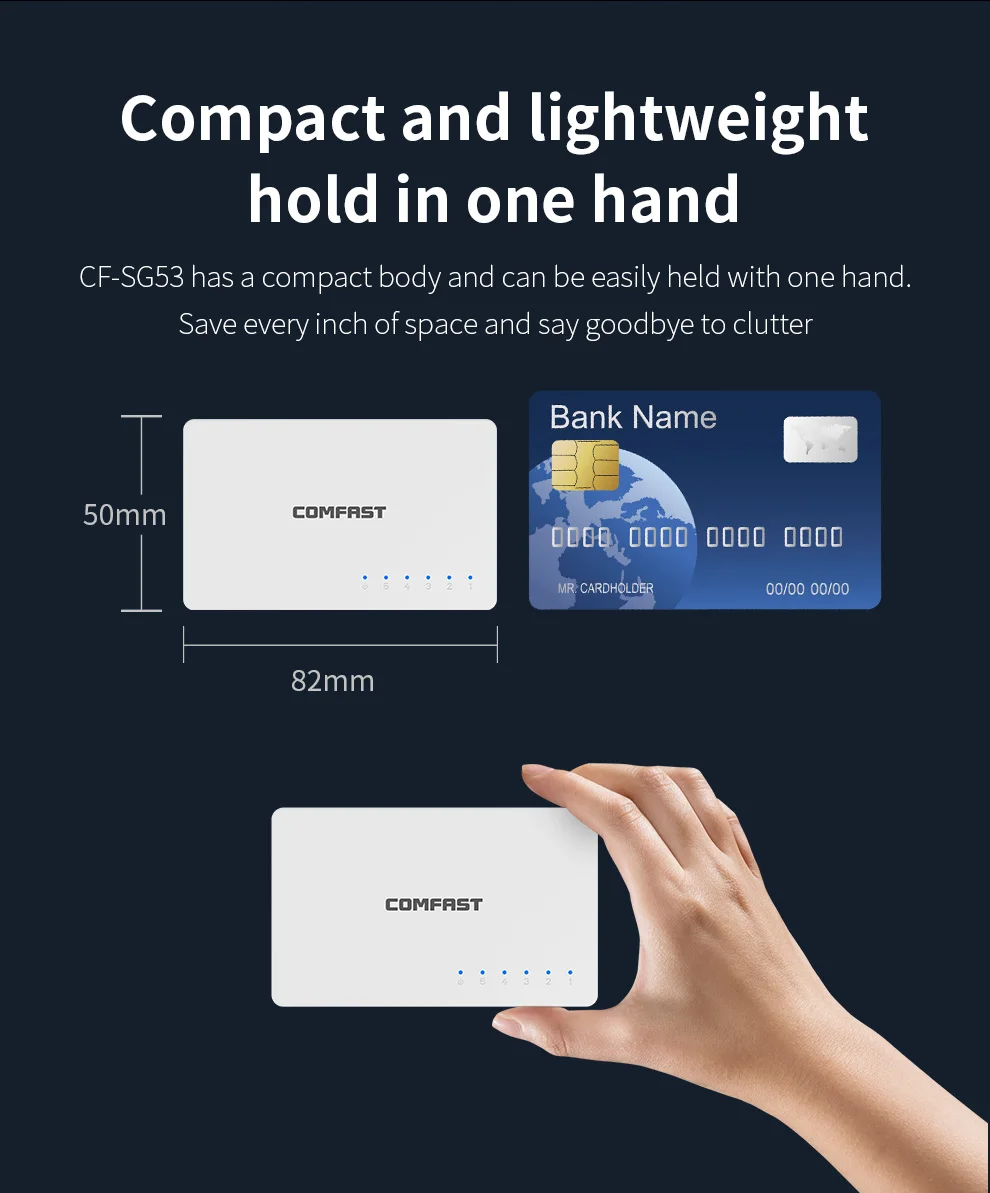

Compact and lightweight , hold in one hand
CF SG53 has a compact body and can be easily held with one hand.Save every inch of space and say goodbye to clutter
Unplug and plug at willstable and no disconnection
Provide 5 10/100/1000M adaptive ports,All ports support automatic flipping without any configuration, plug and play
Energy saving , green and environmentally friendly
Supports Green Ethernet technology, by detecting cable length and workload, Effectively reduce energy consumption without reducing equipment operating performance and efficiency
Fully compatible and widely used
CF-SG53 is fully compatible with computers, smart TVs, printers, cameras andother equipment.Better meet application scenarios such as home, enterprise,monitoring and other
networking needs

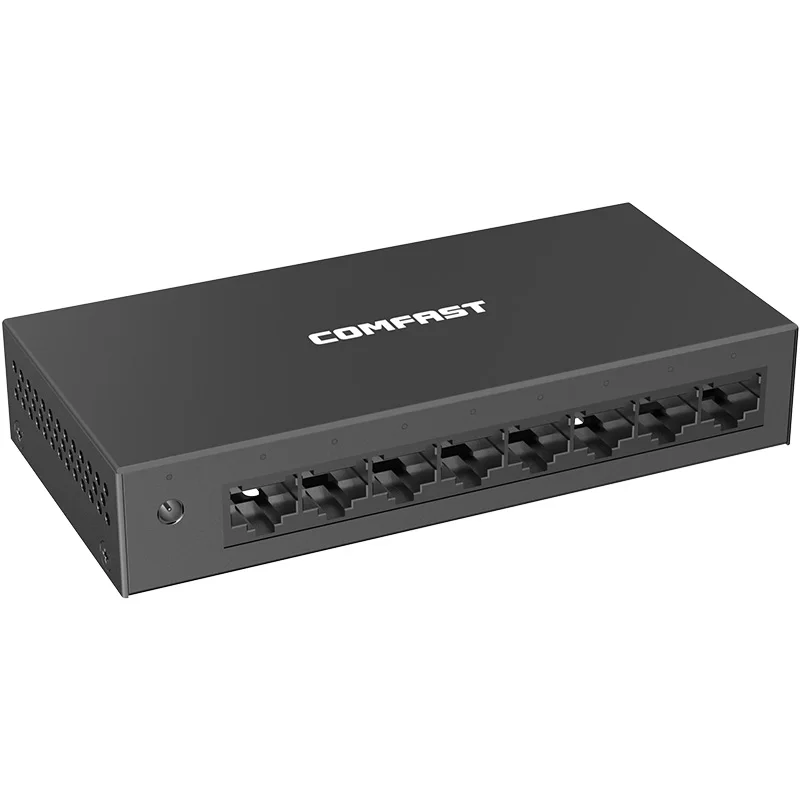

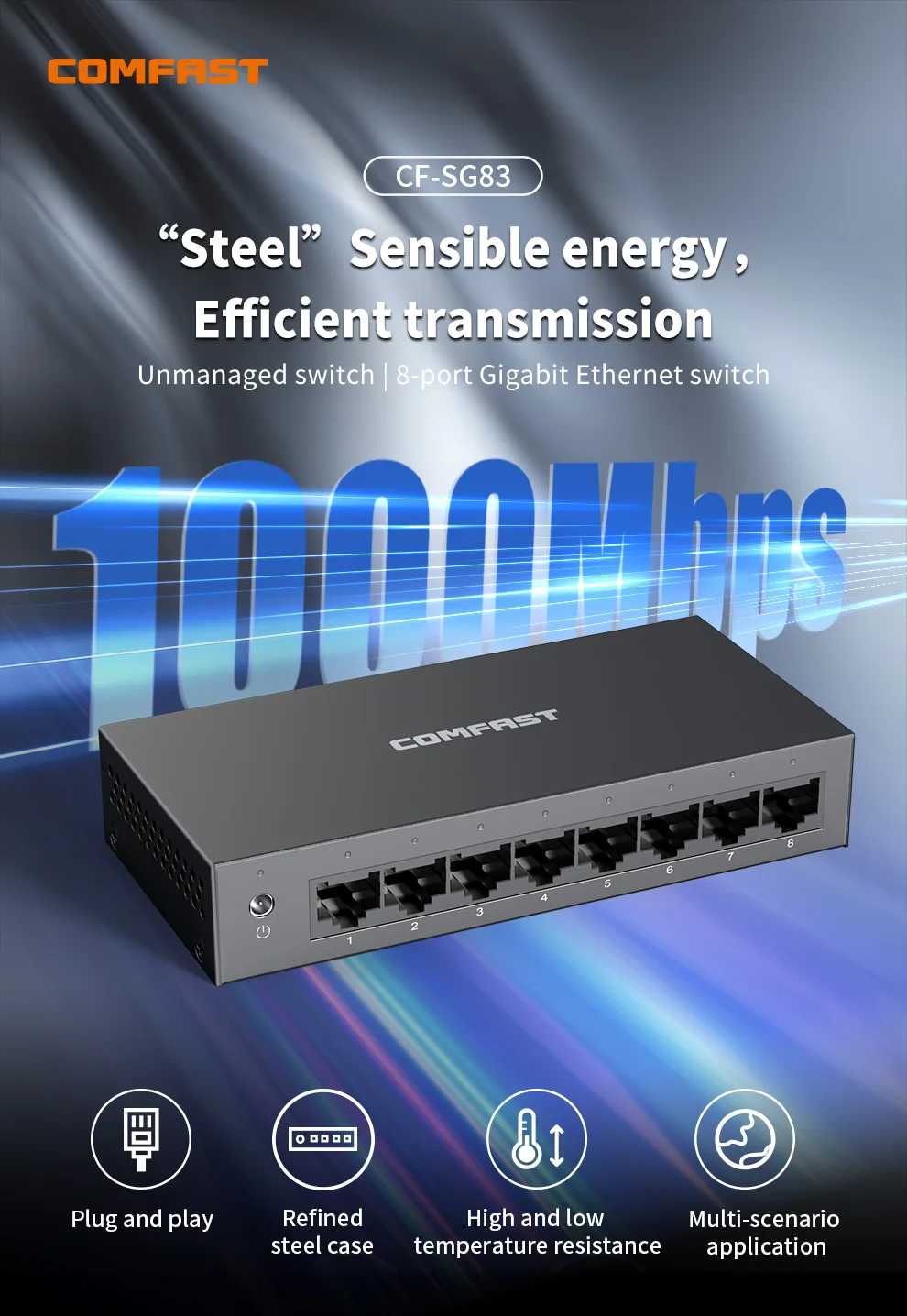

1000Mbps Unmanaged switch 8 port Gigabit Ethernet Switch
Plug and play Refined steel case
High and low temperature resistance
Multi-scenario application
