- Surface Pattern: other
- Double-sided writable: no
- Style: Floor Movable Type
- Folded: No
- Whiteboard Type: Interactive Whiteboard
- Model Number: FT8
- Origin: Mainland China
- Type: whiteboard
- Calibration: automatic(5 seconds) / manual (4/15 points)
- Multi-touch: 100 points touch,writing and erasing can be performed simultaneously
- Latency: less than 6 ms
- Filter: software auto-control/enhance stability
- Min Active Size: 30 inches
- Max Active Size: pen touch:220inches/finger touch:150inches
- Technology: laser image calibration technology
- Positional Accuracy: 1 pixel (resolution: 4096*4096)
Hot Selling Finger Touch Portable Interactive Whiteboard Interactive Game Smart Teaching Board Digital Electronic Class USB Smart Board Office Board Easy Installation
Introduction
Finger touch portable interactive whiteboards FT8 includes with two parts: emitter and signal receiver. Emitter is fixed on flat surface. It emits infrared laser curtain on the surface which is about 1mm thick invisible light and parallel with the projection screen surface, 1-2mm above the screen surface. When the fingers or any non-transparent objects touch this virtual surface, the light will be reflected and detected by the signal receiver. Computer will figure out the position of the mouse by accurate calculating the reflected light position.
Specifications
For Multi points, please noted the whiteboard software must support Windows OS Native Touch
|
FT8 Finger Touch Interactive Whiteboard Specifications |
|
|
Calibration |
Automatic(5 seconds)Â / Manual (4/15 points) |
|
Multi-touch |
100 points touch |
|
Latency |
<30ms |
|
Filter |
Software auto-control, enhance stability. |
|
Minimum Active Size |
40 inch |
|
Max Active Size |
150inch( no sunshine room); |
|
Technology |
Laser Image Calibration Technology |
|
Positional Accuracy |
±1 Pixel (Resolution: 4096*4096) |
|
Aspect Ratio |
4:3;16:9;16:10 |
|
Projector ratio |
Short throw:0.86Â Â Â Â installation distance:0.84m |
|
Number of lasers |
unit *3 |
|
Power |
5w |
|
Power of Laser Beam |
280mw*2 |
|
Power requirements |
3.3V/2A |
|
Signal refresh rate |
120fps |
|
Connect |
The sensor and computer are connected by USB Cable; Emitter and Sensor are wireless; Emitter just need power. |
|
Weight |
0.5kg |
|
OS Requirement |
Windows XP, Windows 7, Windows 8, Windows10; |
|
Software |
OwaySIWB; multi-board |
|
Certification |
CE, FCC |
|
Warranty |
2-year |
|
Package |

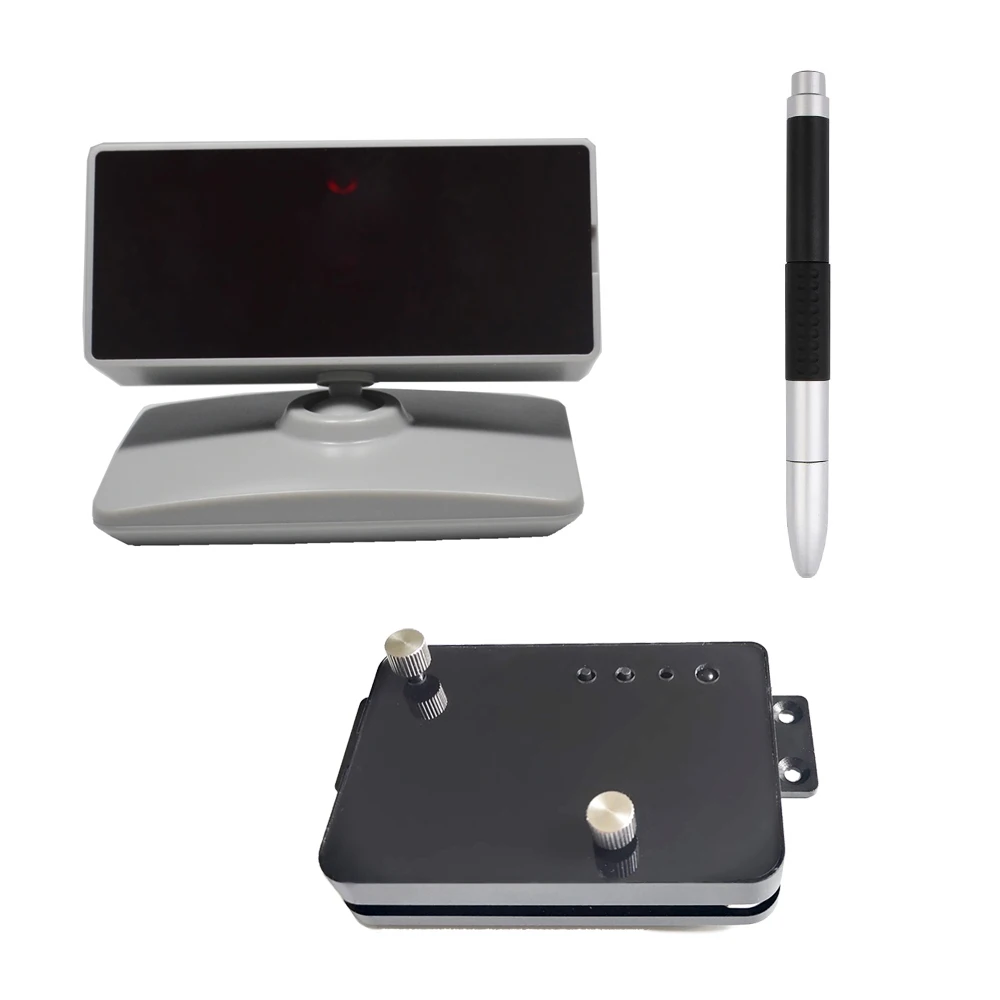

1. Sensor 2.Emitter 3. IR pen 4.USB cable (10m) 5. Remote     6.Power Adaptor 7. CD with software |
Working Sketch:
FT8 is small and easy to install. It doesn’t require professional technology to install.
Just install the laser emitter in the middle area above the whiteboard (or other flat surface) and place the signal receiver on the projector.
Remar: Keep the IR emitter 2-5 cms above the active flat surface.
Application Places:
School;
Parties;
Play area;
Exhibitions ;
Shopping mall;
Amusement park;
Company reception Areas etc.
Package & Accessories:
FT8 measurements : 35x22x13cm, gross weight 1.8KG
Product demo on You Tube:
https://www.youtube.com/watch?v=DnGizSDH0Hg
